AM1604A Direct Flag Printer 1.6meters with 4 Epson I3200 printheads
$12000
Product image for reference.

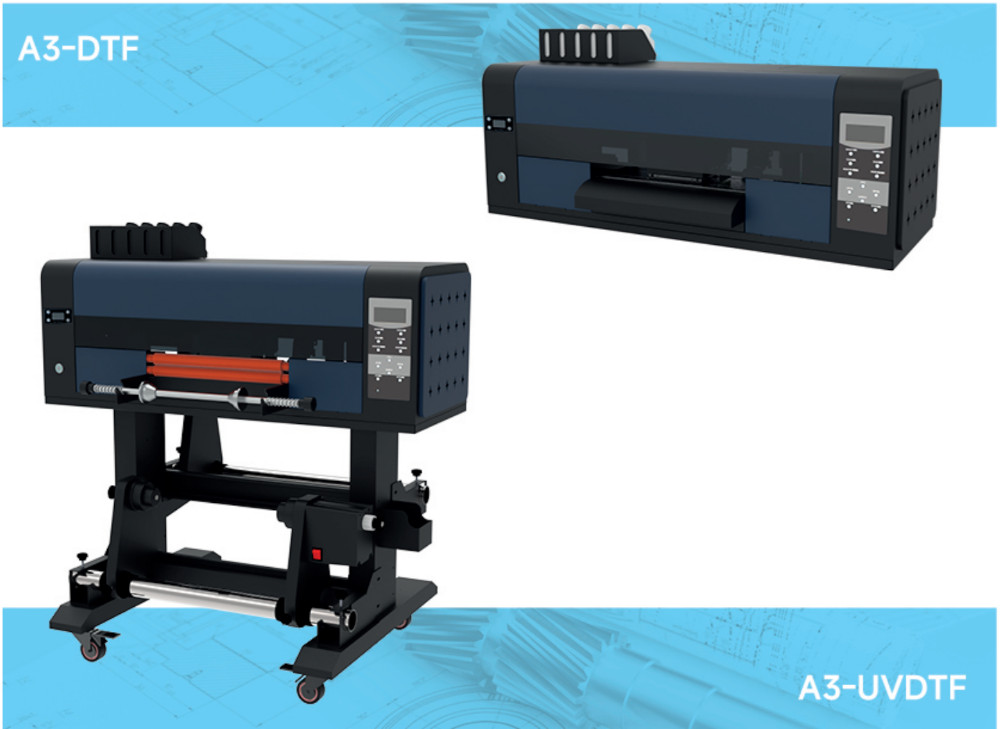

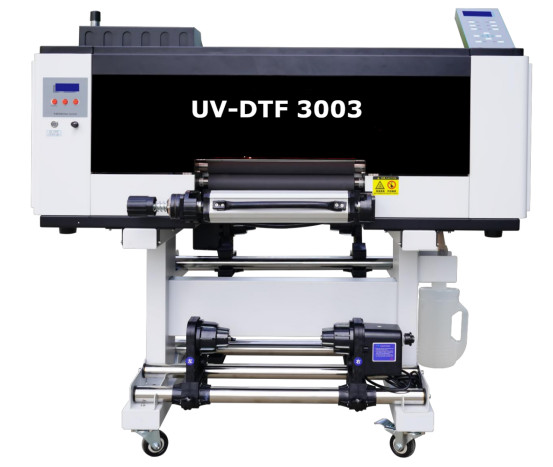

A3 Size UV DTF AMO 3003 with 3 pieces of XP600 Printheads
Reference price$4950
Reference prices are shown as listed in the supplier catalog on 11 Oct 2026. Currency symbols are retained as displayed. Request a current quotation; availability, exact version and compatibility are confirmed per inquiry.
Send your printer model and clear old-part photos. We confirm the correct version before quotation. Catalog entries do not confirm current stock or an approved configuration.
- Version, head rank and ink type checked against your printer before quotation
- Ships from Yiwu, Zhejiang, China
- Remote technical support after delivery
Product Details
| Part type | printhead |
|---|---|
| Brand | AMO |
| Printhead / head code | XP600 |
| Fits | XP600 Printheads |
| Ink type | UV, DTF |
Frequently asked questions
Are your printheads genuine?
Yes. We supply genuine printheads only. The exact model and condition are stated in your quotation.
How do I make sure I order the correct part?
Send your printer model and clear photos of the existing part or its label. We confirm the correct version, compatibility, price, stock and lead time before you pay.
Do you ship internationally?
Yes. Shipping cost and delivery time are confirmed in your quotation.
What is the ordering process?
Inquiry → version and compatibility confirmation → formal quotation → payment → procurement and shipment.
Printt width:300mm
Specification:
Headsets: Epson XP600
Head quantity: 3 pieces
Speed:
High quality model :1.4 square meters/hour
Fast production mode:3 square meters/hour
Feeding Width:300mm
Media Transmission:Resistance Bilateral Adjustable Paper Placement System
Color:Six colors (c/M/y/K/V/w)
Ink Type :Special ultraviolet ink for glass labels
Communication Interface :Network Port
Operating Language :Chinese / English
Printing software :Maintop6.1 / photoprint (optional)
Operating System :Win10/Win7
Printing Media :A/B Film
Head Cleaning:Automatic Ink Battery Cleaning System
Configuration:
Servo motor high quality X-axis stroke
High quality chuchen large torque motor shaft and + high precision reducer
Bilateral Resistance Adjustable Disconnect System
Hiwin Silent High Speed Linear Guide
Automatic mixing system for white ink. Ink Solidification Setting: High Power Air Cooled Ultraviolet Lamp
The ink path increases the filter, the high quality filtration system
Automatic Rubber Roller Lifting System
Waste collection film: swing bar squeezes Smart Energy Waste collection film
Ink shortage alarm setting: automatic ink shortage alarm system
Paper coating configuration: high precision roller, temperature control roller intelligent heating
Paper shortage alarm: equipped with paper shortage alarm induction function
Ink Type: Eco-friendly special ultraviolet ink, beautiful color and high durability
Color control: International standard ICC color control, user-adjustable curves and density and other functions.
Working Environment:15 - 30°C/40% - 60%
Equipment power:1200w
Package Weight:100kg
Size of whole machine:1525*725*755mm (packing size) 1200*500*1166mm (equipment size)
Recommended computer configuration:
Operating System Win7/win10 Gigabit Network Card Standalone Graphics Card 8g - Memory 500g Hard Drive tnel(r)CORE(tm)i5/i7cpu
Detail:
Printer new style reference:
Applications:
Included items and support are supplied only against the confirmed written quotation. Images do not define the included scope.
